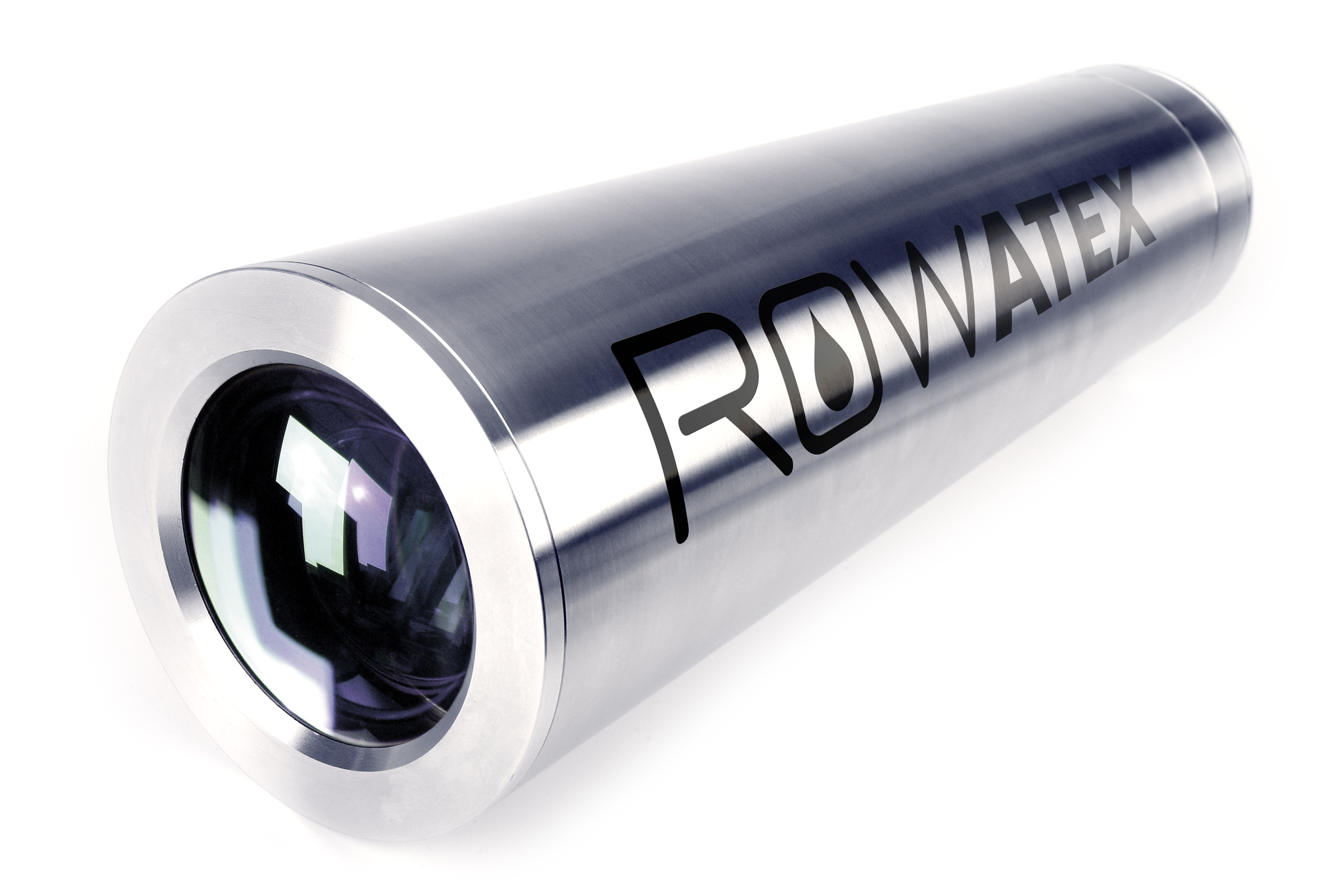

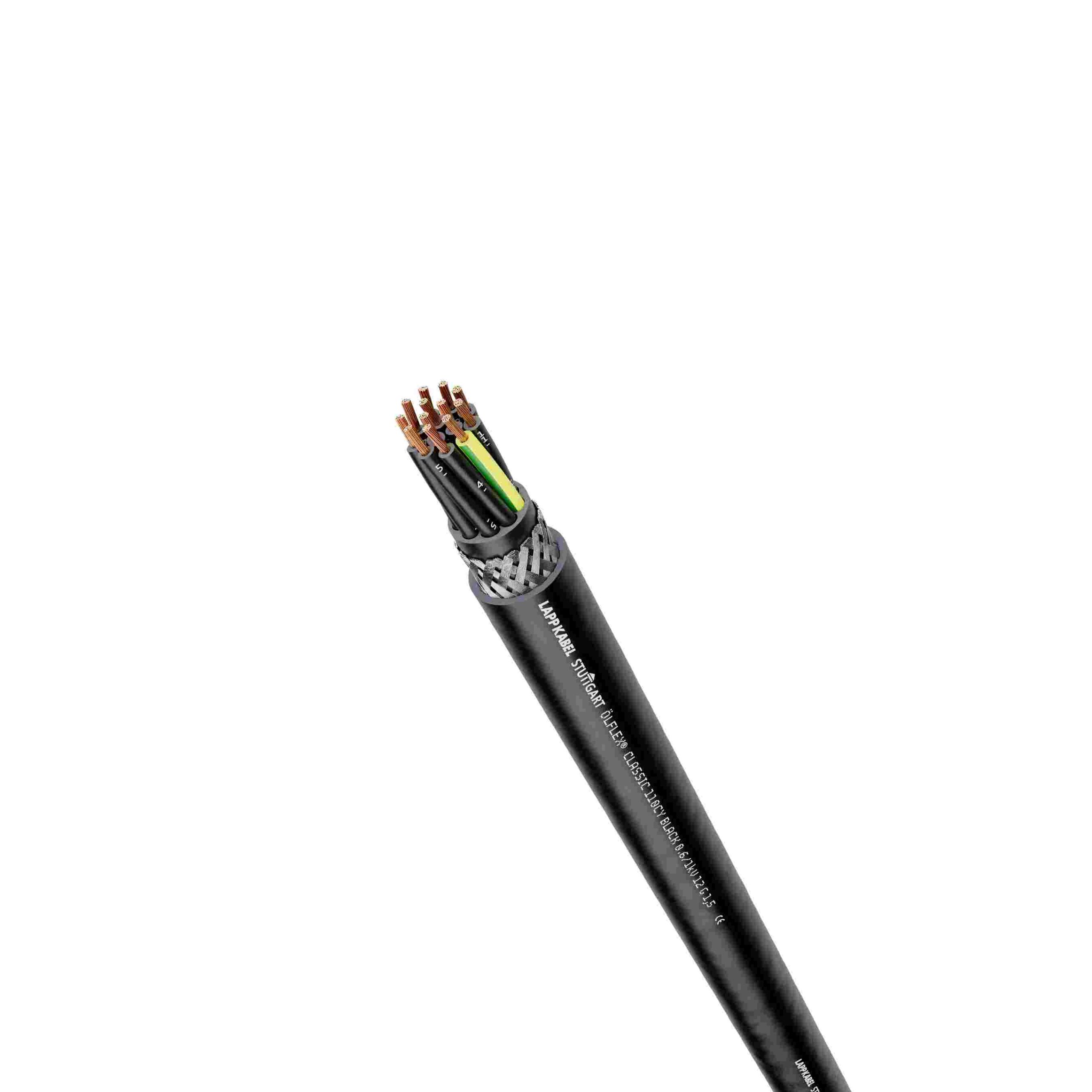

ROW ATEX
O-2301E, O-4501E, O-4500E
Technical Specifications
Detector Variants
Model
ROW O-2301E
Sensitivity
> 1 μm (micron) oil film
Oil Detection
• Medium (diesel, lubricants etc..)
• Heavy (crudes, fuel oils etc..)
Range
Up to 8 m [24 ft] from surface
Water Level Change Tolerance
Up to 1 m [3 ft] from surface

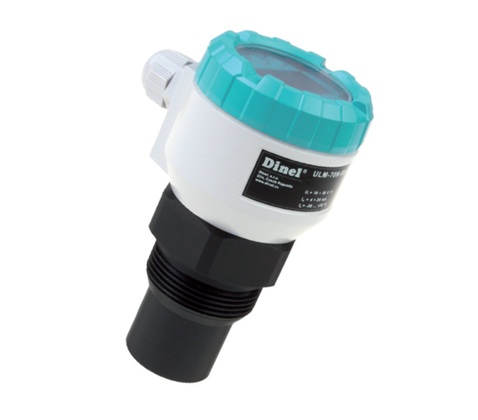

If > 1m [3 ft], recommend Range Finder ATEX (level sensor) Add-on
Operation Temperature
-30ºC to +60ºC [-22ºF to 140ºF]
Enclosure
Stainless steel 316, Explosion-Proof Enclosure, ATEX/IECEx
Zone 1 II 2 G Ex d IIC T6 Gb, Class 1, Division 1, Groups CD
IP68, hermetically sealed, weather proof
Dimensions (L x W x H)

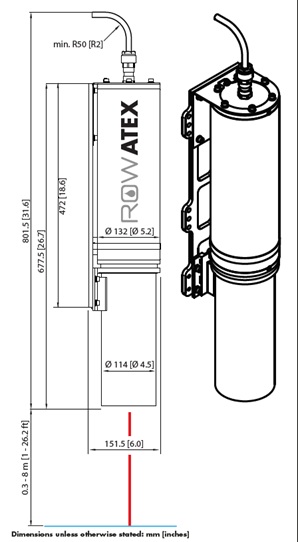

677.5 x 132 x 132 mm [26.7 x 5.2 x 5.2 in] device dimensions
Includes external metal mounting bracket
Weight
12.2 kg [26.9 lbs] with sunshield extension
Power Input
12 – 24 VDC (10V - 30V) as standard
Power Consumption
< 2 Watts (DC)
Light Source
Pulsed UV LED
LED Lifetime
5 years typical, thereafter, LED replacement
Telemetry Outputs
• Relay Switch
• RS485 Digital (Modbus)
• 4-20 mA Analog
Compatible Telemetry
• RS-232
• Ethernet LAN
• Wireless Radio
• DCS or PLC
• GSM
User Interface
• ROW Configurator software for setup & calibration
• ROW Manager software for network visualization
Certifications
• EN/IEC: 60079-0, 60079-1
• ATEX (Zone 1) II 2 G [DNV 20 ATEX 61463X]
• IECEx Ex d IIC T6 Gb [IECEx PRE 20.0044X]
• IP68: EN 60529
• IECEx Ex d IIC T6 Gb [IECEx PRE 20.0044X]
• IP68: EN 60529
Warranty
2-years factory warranty as standard, supported worldwide

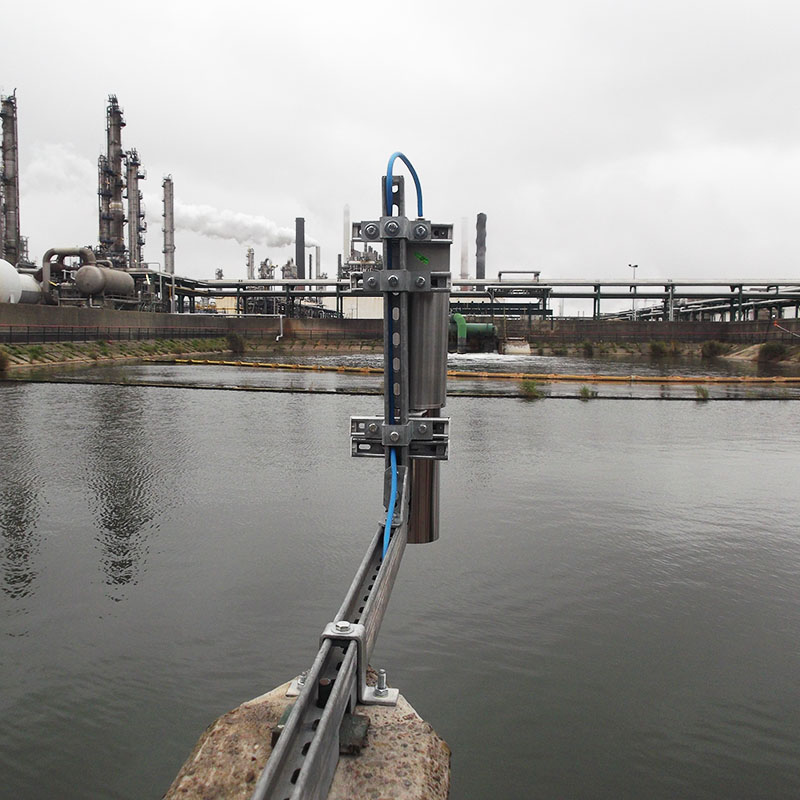

Belgium Refinery Sump Pit

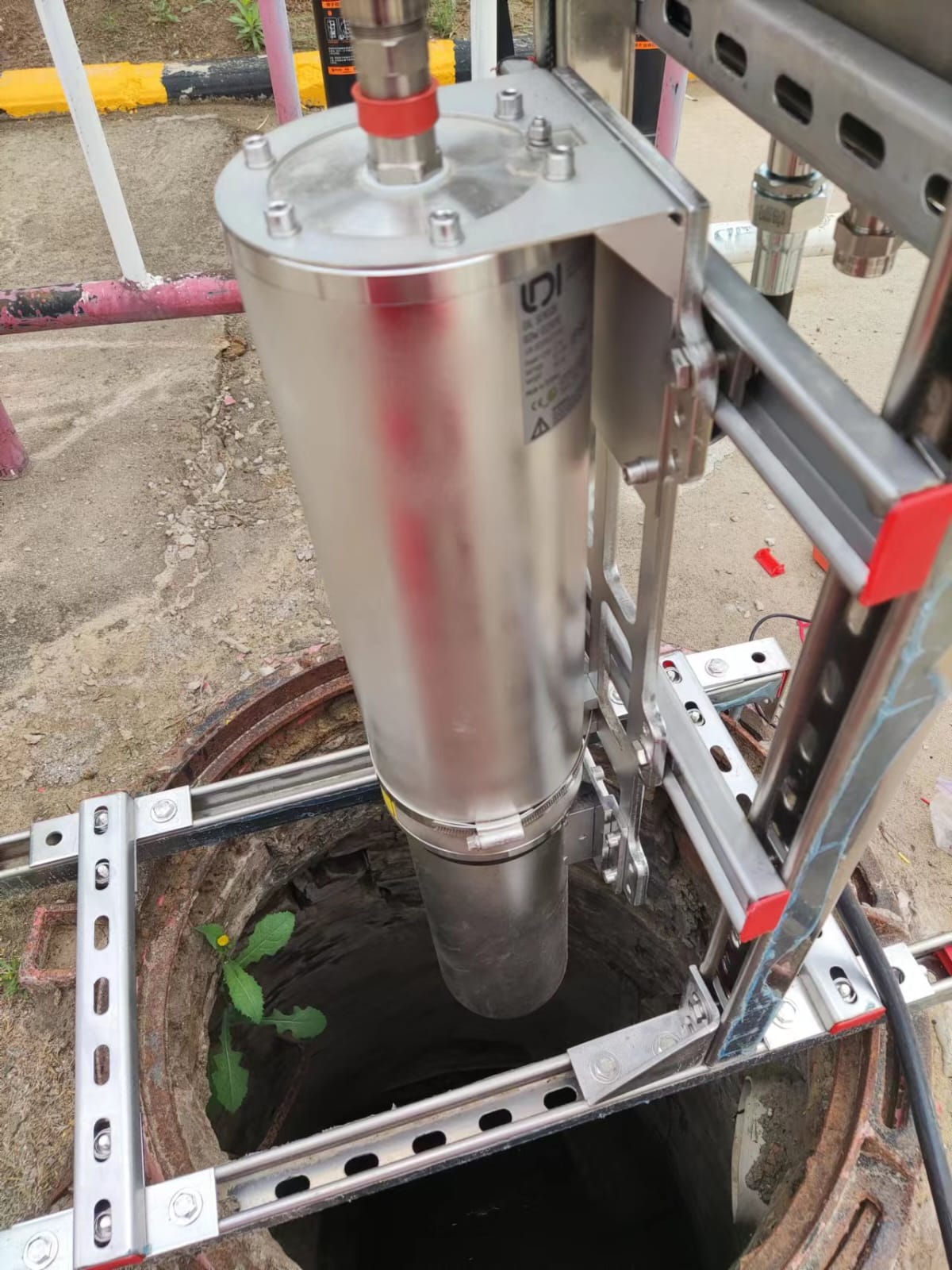

China Oil Field Sewer
Norway Fuel Depot Sewer
Brazil Offshore Oil Platform

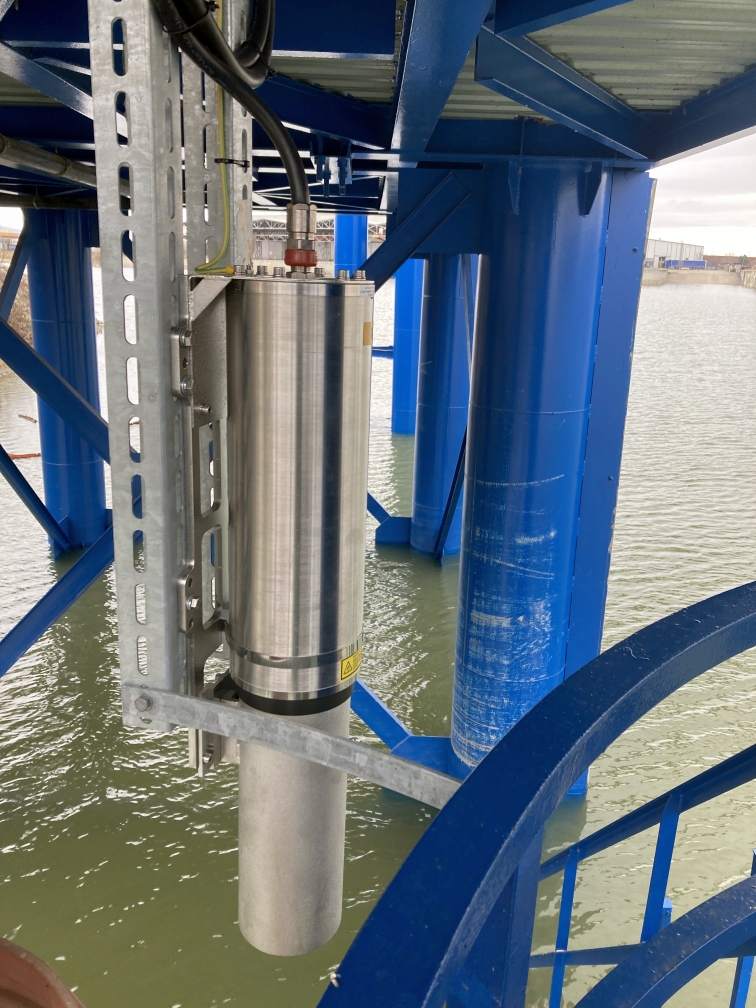

Slovakia Oil Terminal
| Product | Document Category | Description | File Type | |
|---|---|---|---|---|
| ROW Series | Brochure | Marketing brochure for the ROW oil spill detectors | Download | |
| ROW ATEX | Technical Sheet | O-2301E, O-4501E, O-4500E | Download | |

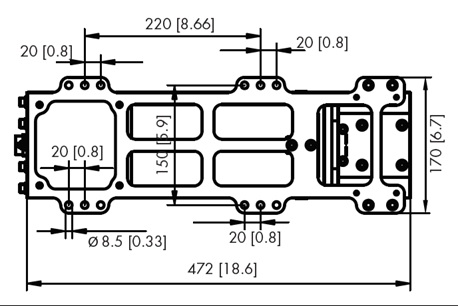

| ROW ATEX | Technical Sheet | O-2301E, O-4501E, O-4500E: Bracket dimensions | Download | |
