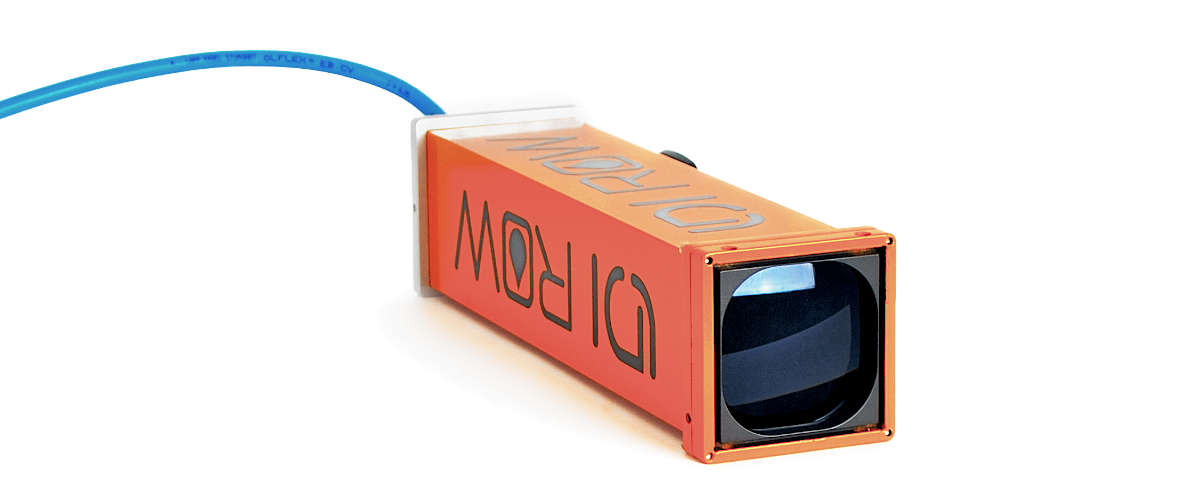

ROW Aluminium

O-2311A
ROW Aluminium front view ROW Aluminium detail ROW Aluminium deployment diagram

Technical Specifications

Detector Variant
Model
ROW O-2311A
Sensitivity
> 1 μm (micron) oil film
Oil Detection
•  Medium (diesel, lubricants etc..) •  Heavy (crudes, fuel oils etc..)
Range
Up to 10 m [33 ft] from surface
Water Level Change Tolerance
Up to 1 m [3 ft] from surface If > 1m [3 ft], recommend Range Finder (level sensor) Add-on
Operation Temperature
-30ºC to +60ºC [-22ºF to 140ºF]
Enclosure
Anodised Aluminium, powder coating, purged (Ar) IP68, hermetically sealed, weather proof

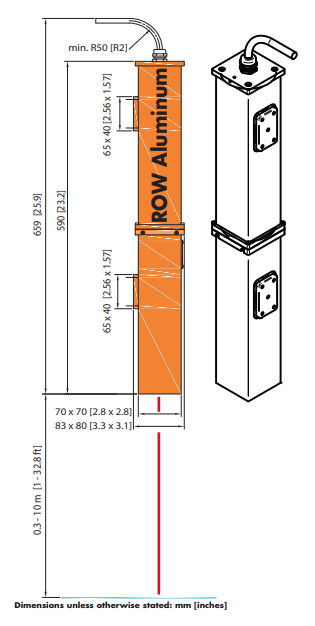

Dimensions (L x W x H)
590 x 83 x 80 mm [23.2 x 3.3 x 3.1 in] device dimensions Includes mounting plates for installation
Weight
1.8 kg [3.97 lbs] with sunshield extension
Power Input
12 – 24 VDC (10V - 30V) as standard
Power Consumption
< 2 Watts (DC)
Light Source
Pulsed UV LED
LED Lifetime
5 years typical, thereafter, LED replacement
Telemetry Outputs
•  Relay Switch •  RS485 Digital (Modbus) •  4-20 mA Analog
Compatible Telemetry
•  RS-232 •  Ethernet LAN •  Wireless Radio •  DCS or PLC •  GSM
User Interface
•  ROW Configurator software for setup & calibration •  ROW Manager software for network visualization
Certifications
•  EN 61000-6-2, 61000-6-3, 61326-1, 61000-4-2    61000-4-5, 61000-4-6, 61000-4-8, 61010-1 •  US EPA: EPA/530/UST-90/009 •  IP68: EN 60529
Warranty
2-years factory warranty as standard, supported worldwide
RS485-USB
RS485-USB Connector
PDF
RS485 to TCIP
RS485 to TCIP Connector
PDF
RangeFinder Adaptor
Range Finder Adaptor Add-on
PDF
Range Finder
Range Finder Add-on
PDF
Power Adaptor
AC to DC Power Connector
Cable
ROW cable length Add-on
PDF
Local Alarm
External Audio/Visual Alarm Add-on
PDF
Junction Box
Weatherproof J-Box Cable Extender Add-on
France WWTP
France WWTP
India Automobile Plant
India Automobile Plant
Chile WWTP
Chile WWTP

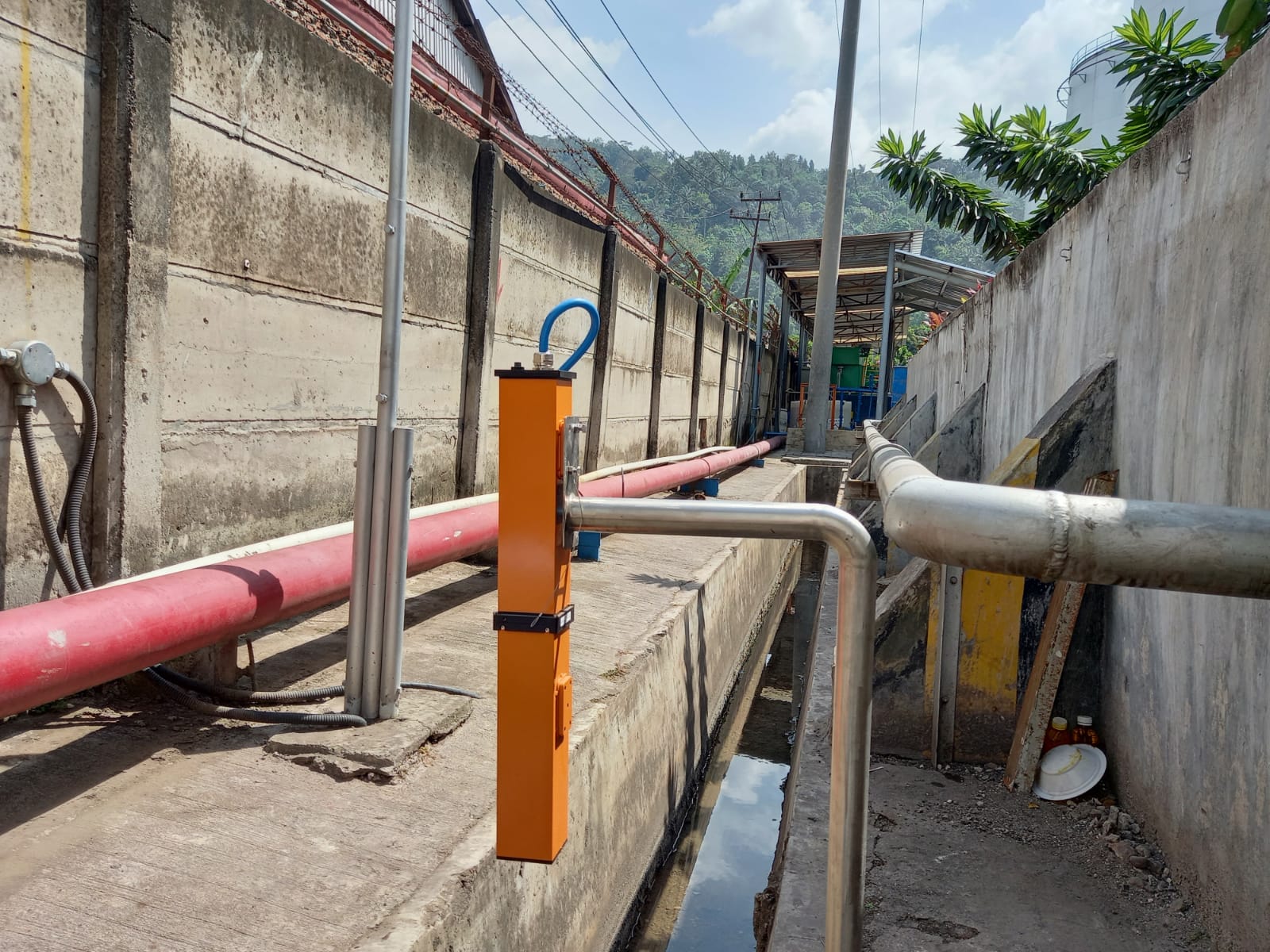

Indonesia Palm Oil
Indonesia Palm Oil Refinery

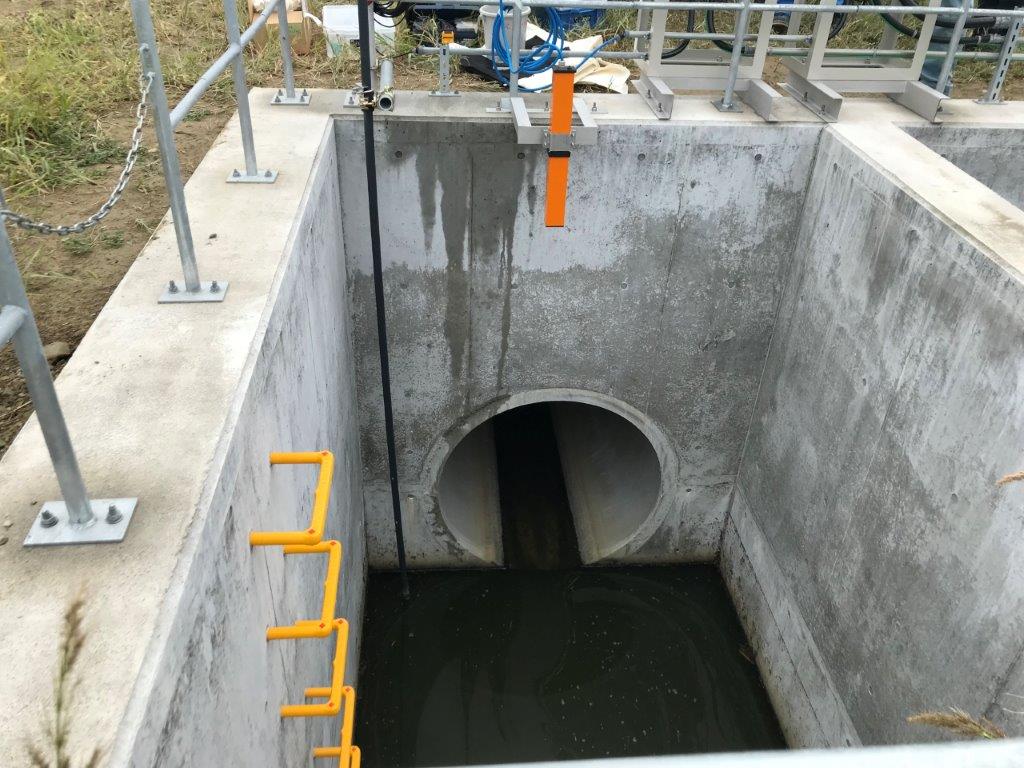

Japan Powerplant
Japan Power Plant
Product Document Category Description File Type
ROW Series Brochure Marketing brochure for the ROW oil spill detectors .pdf Download
ROW Aluminium Technical Sheet O-2311A .pdf Download

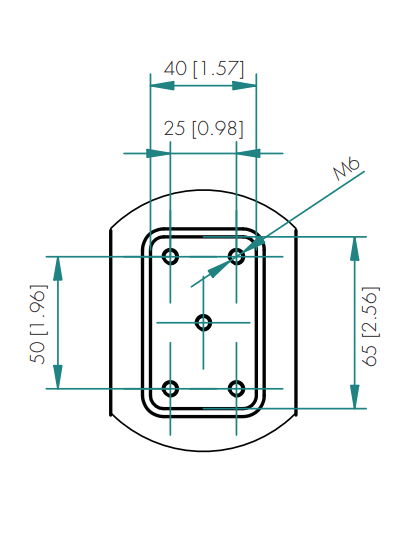

ROW Aluminium Technical Sheet O-2311A: Bracket dimensions .pdf Download
ROW Aluminium Technical Sheet O-2311A: 3D CAD drawing .stp Download
ROW Series Declaration LDI ROW Declaration of Conformity .pdf Download
ROW Series Declaration LDI ISO 9001:2015 .pdf Download
ROW Series Manual ROW Oil Spill Detector Series Manual .pdf Download
ROW Series Manual ROW Accessory Modbus Manual .pdf Download
ROW Series Software ROW Configurator .zip Download
ROW Series Software ROW Manager and Visualization .zip Download
