ROW STAINLESS STEEL

O-2311S, O-4501S, O-4500S

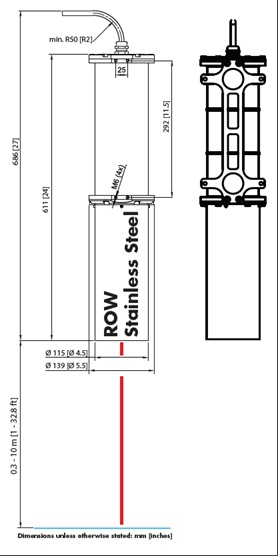

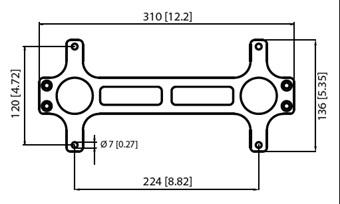

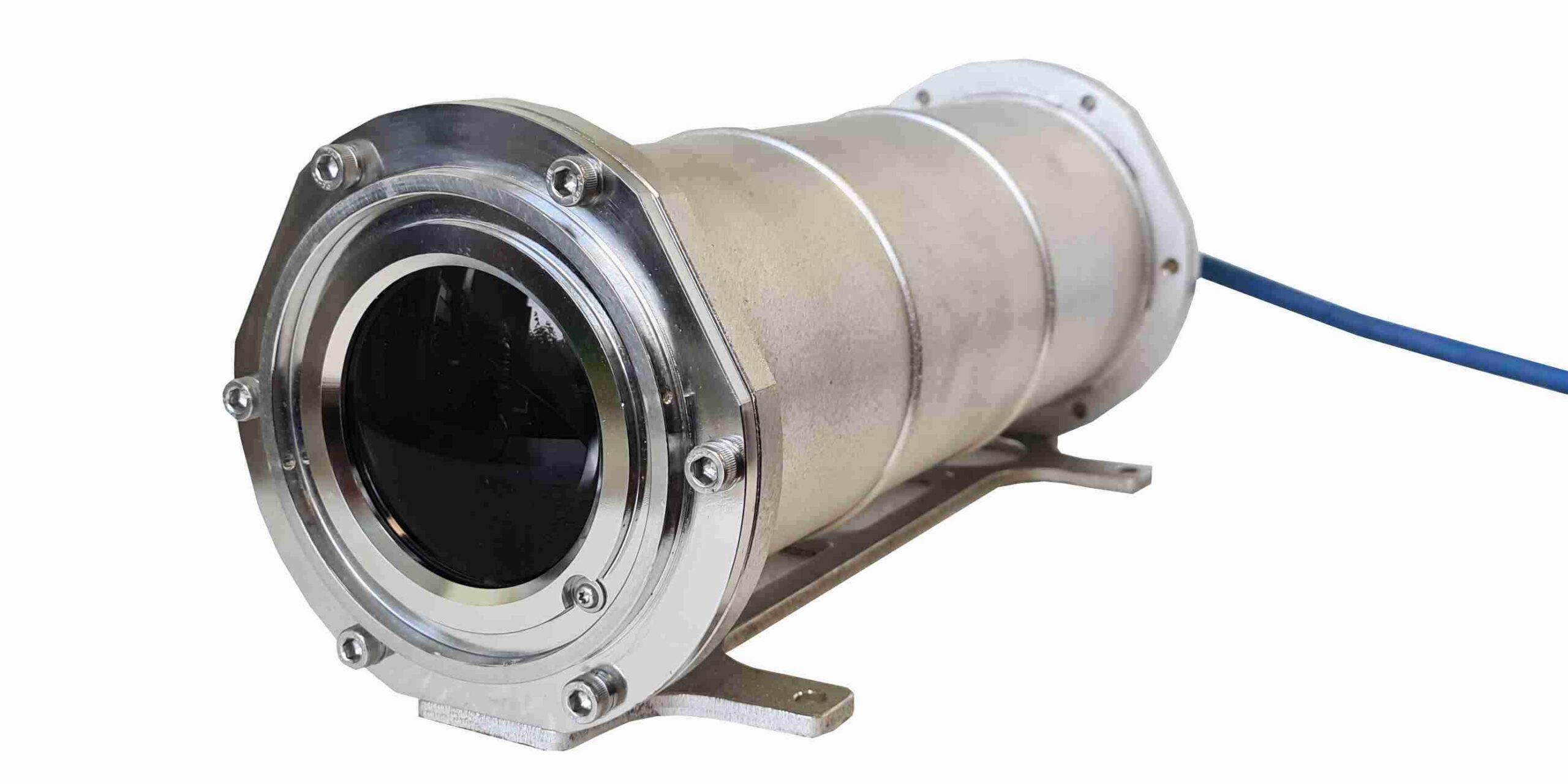

ROW Stainless Steel front view ROW Stainless Steel bracket

Technical Specifications

Detector Variants
Model
ROW O-2311S
Sensitivity
> 1 μm (micron) oil film
Oil Detection
•  Medium (diesel, lubricants etc..) •  Heavy (crudes, fuel oils etc..)
Range
Up to 10 m [33 ft] from surface
Water Level Change Tolerance
Up to 1 m [3 ft] from surface If > 1m [3 ft], recommend Range Finder (level sensor) Add-on
Operation Temperature
-30ºC to +60ºC [-22ºF to 140ºF]
Enclosure
Electropolished 316L Stainless Steel, purged (Ar) IP68, hermetically sealed, weather proof
Dimensions (L x W x H)
611 x 139 x 139 mm [24 x 5.5 x 5.5 in] device dimensions Includes external metal mounting bracket
Weight
9.0 kg [19.8 lbs] with sunshield extension
Power Input
12 – 24 VDC (10V - 30V) as standard
Power Consumption
< 2 Watts (DC)
Light Source
Pulsed UV LED
LED Lifetime
5 years typical, thereafter, LED replacement
Telemetry Outputs
•  Relay Switch •  RS485 Digital (Modbus) •  4-20 mA Analog
Compatible Telemetry
•  RS-232 •  Ethernet LAN •  Wireless Radio •  DCS or PLC •  GSM
User Interface
•  ROW Configurator software for setup & calibration •  ROW Manager software for network visualization
Certifications
•  EN 61000-6-2, 61000-6-3, 61326-1, 61000-4-2    61000-4-5, 61000-4-6, 61000-4-8, 61010-1 •  US EPA: EPA/530/UST-90/009 •  IP68: EN 60529
Warranty
2-years factory warranty as standard, supported worldwide

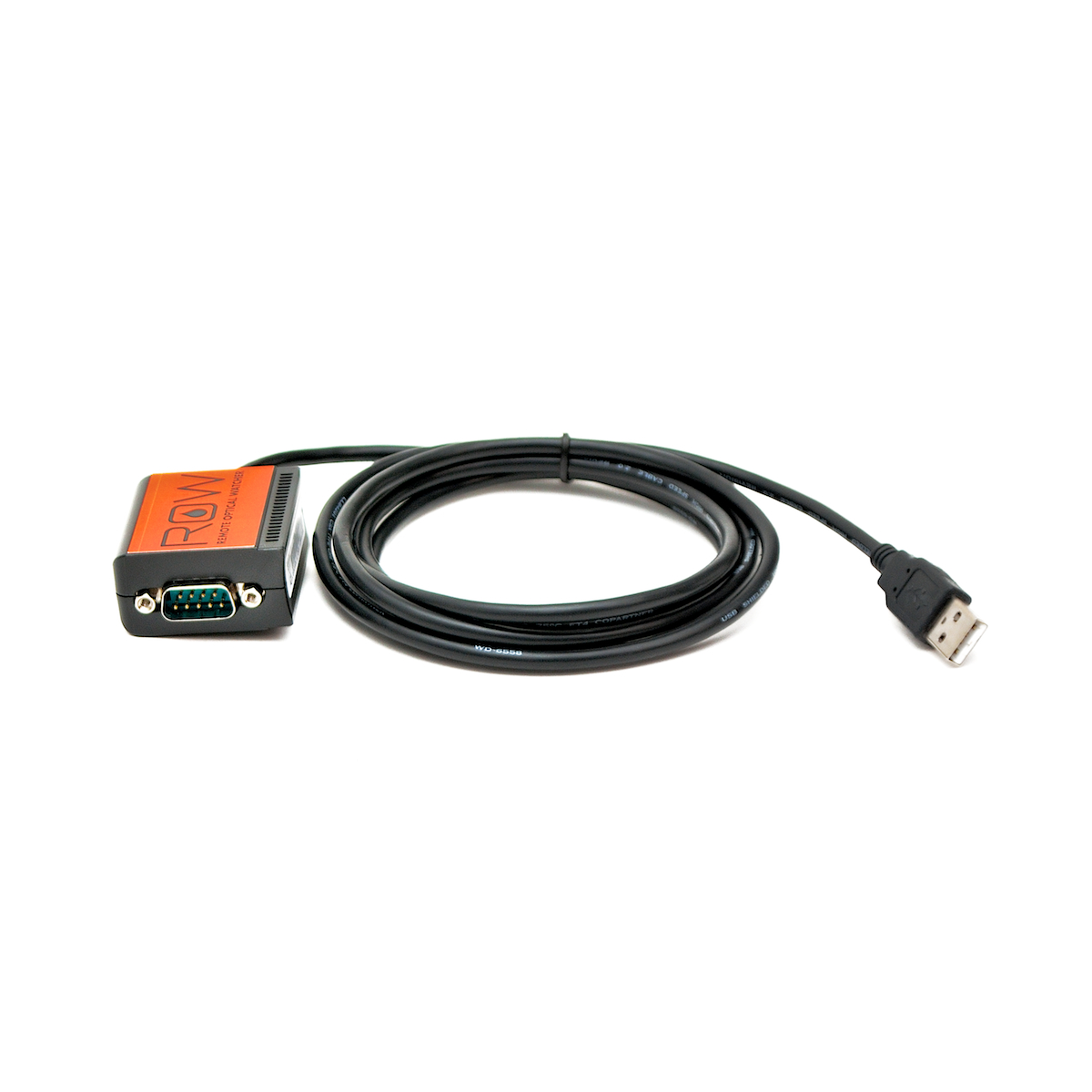

RS485-USB
RS485-USB Connector
PDF

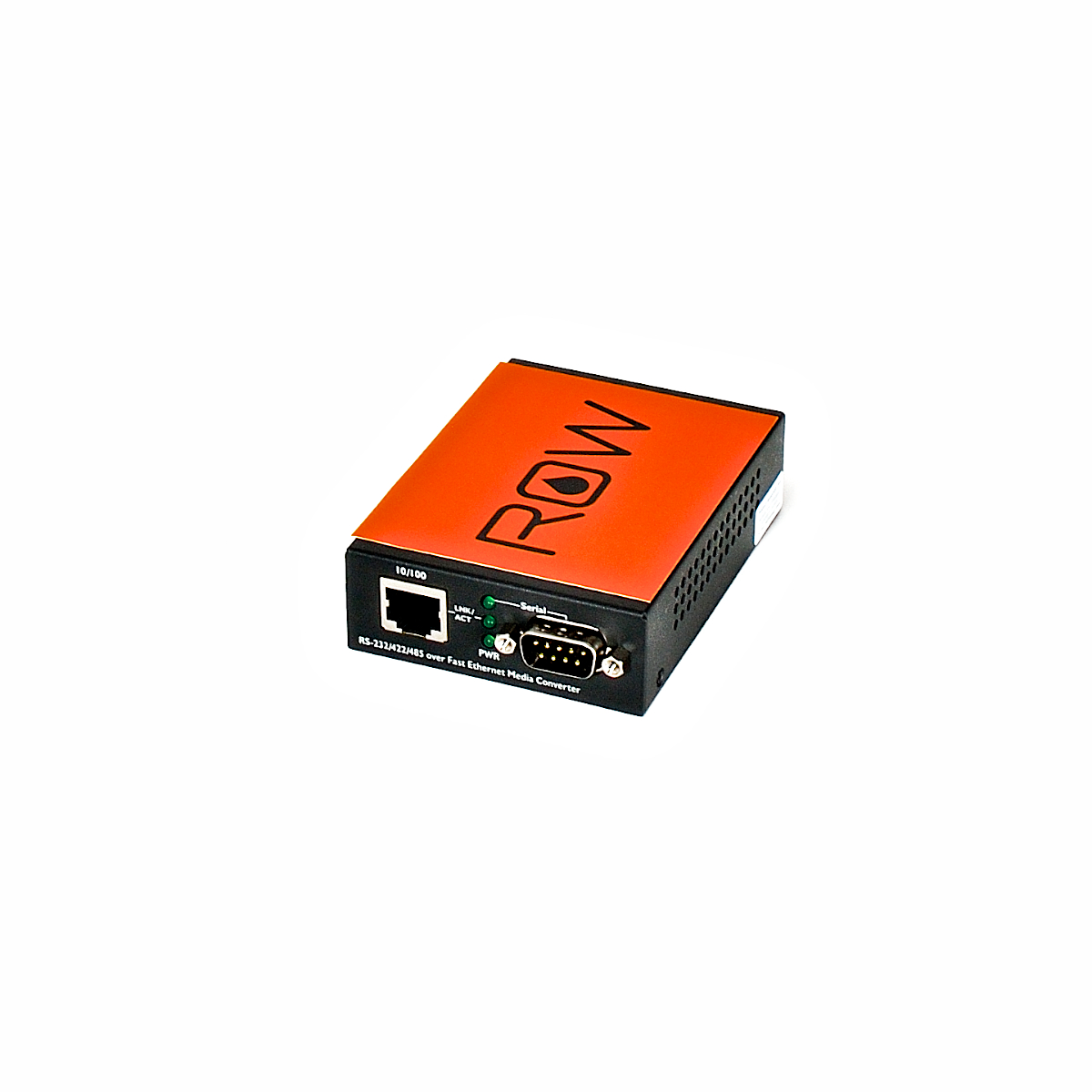

RS485 to TCIP
RS485 to TCIP Connector
PDF

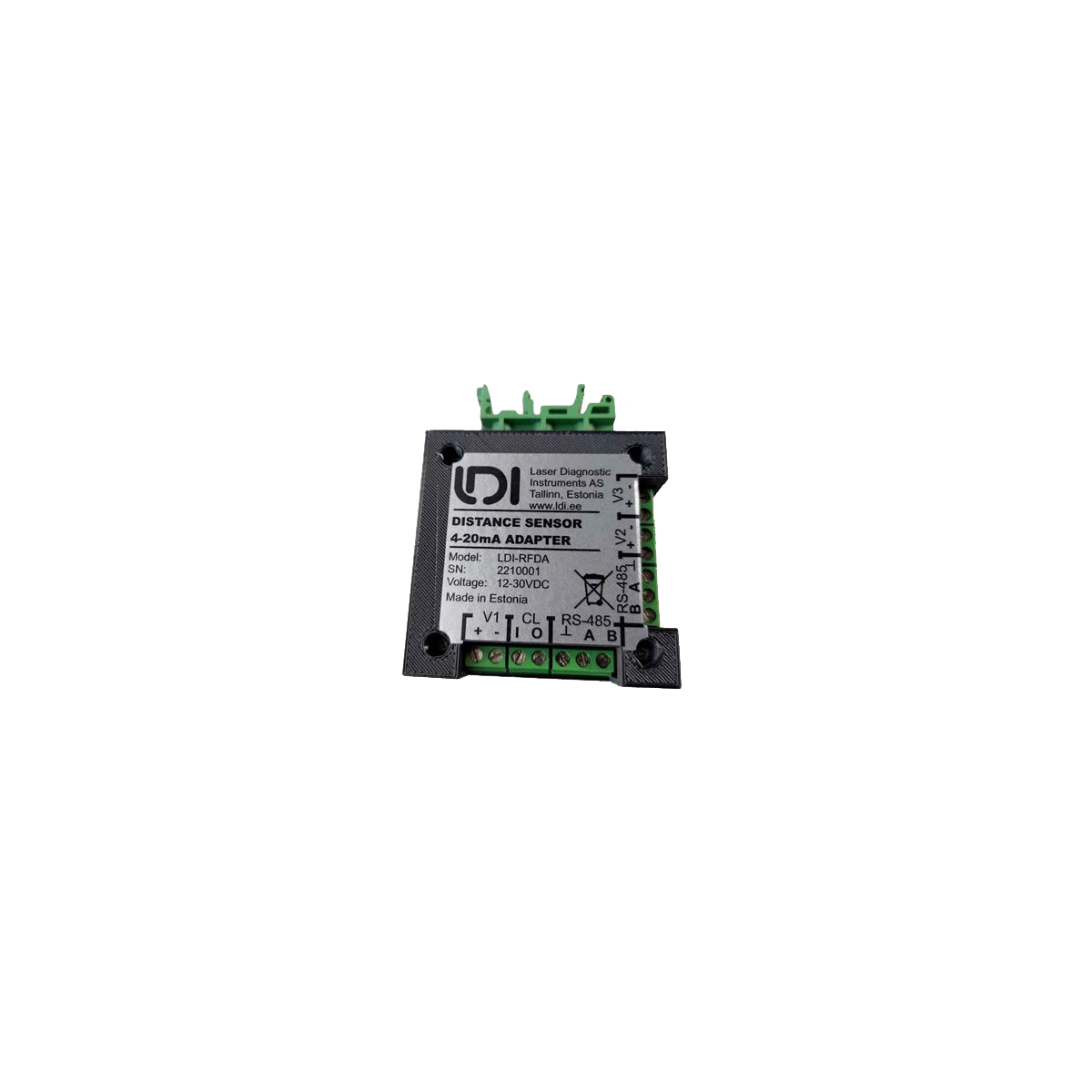

RangeFinder Adaptor
Range Finder Adaptor Add-on
PDF

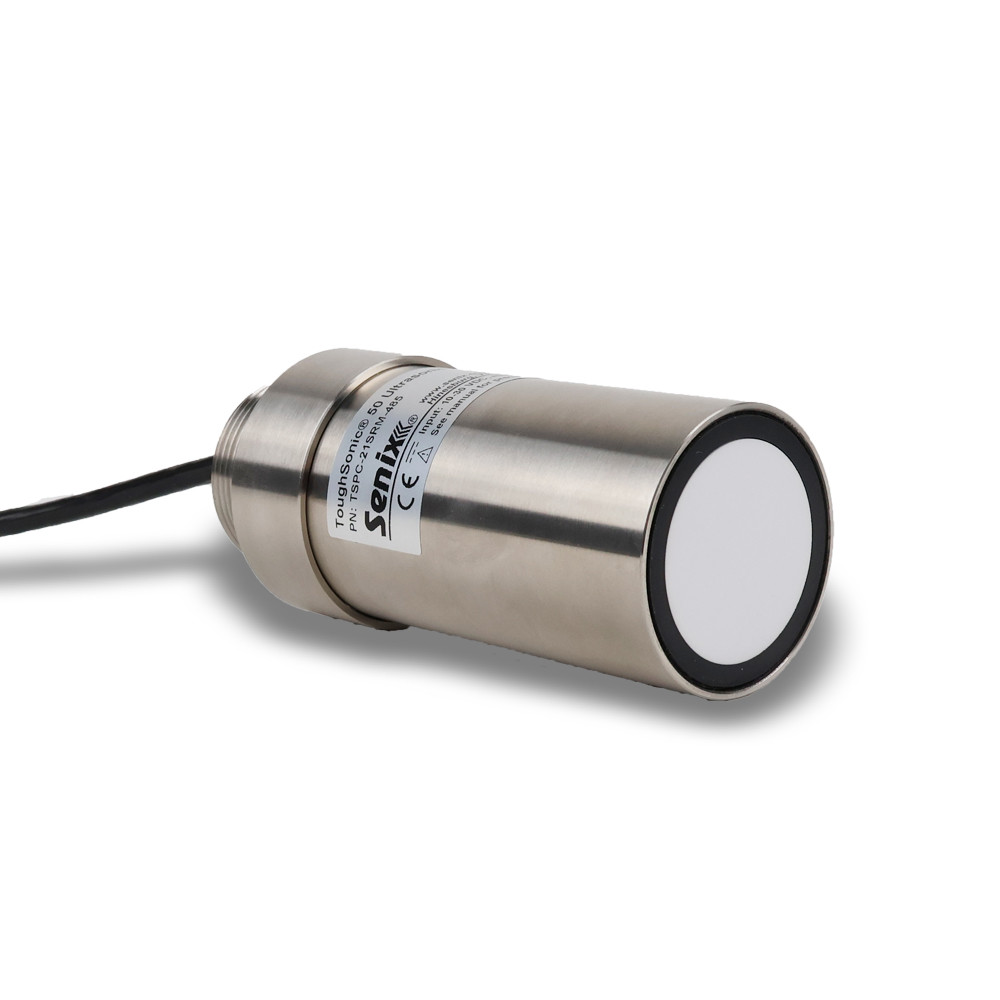

Range Finder
Range Finder Add-on
PDF

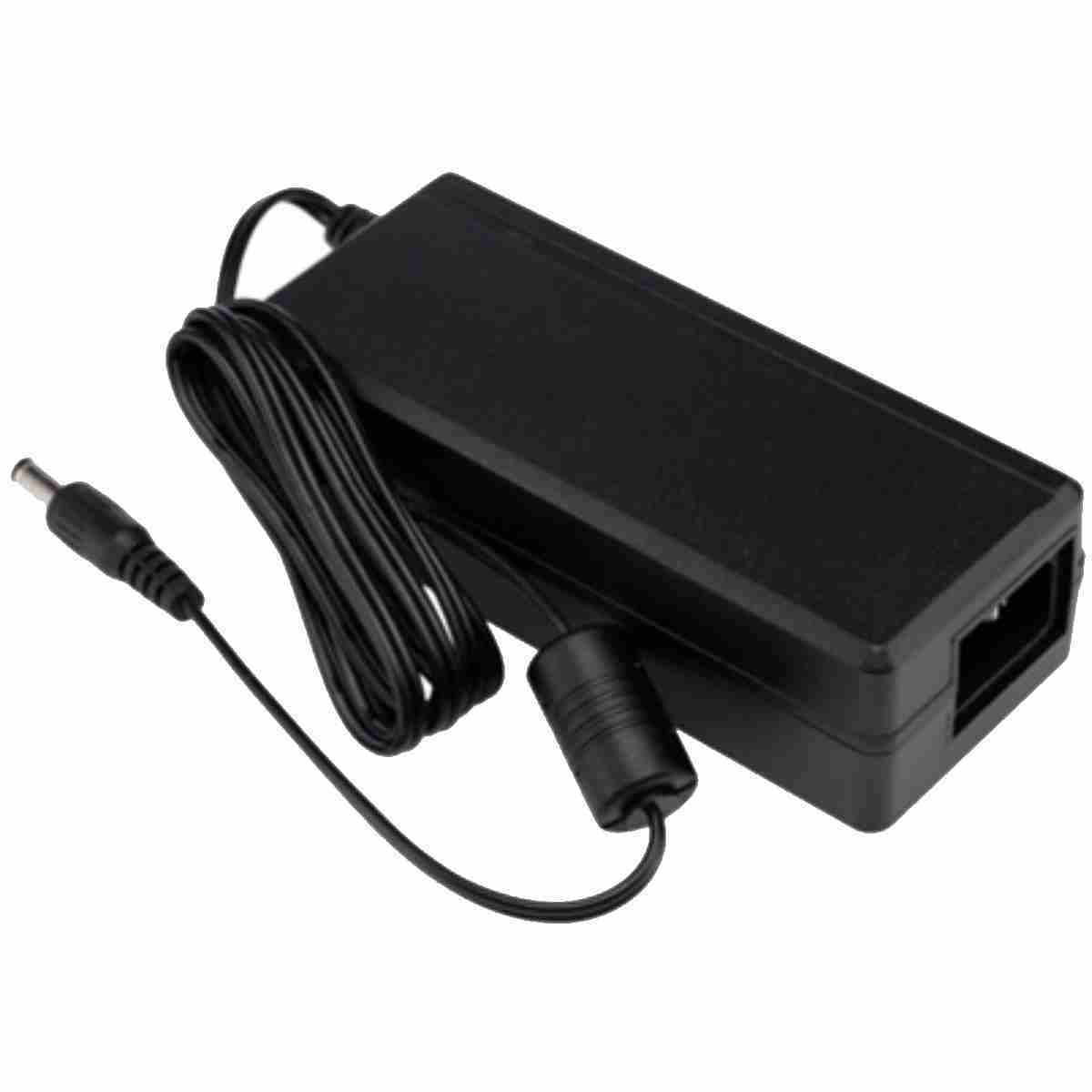

Power Adaptor
AC to DC Power Connector

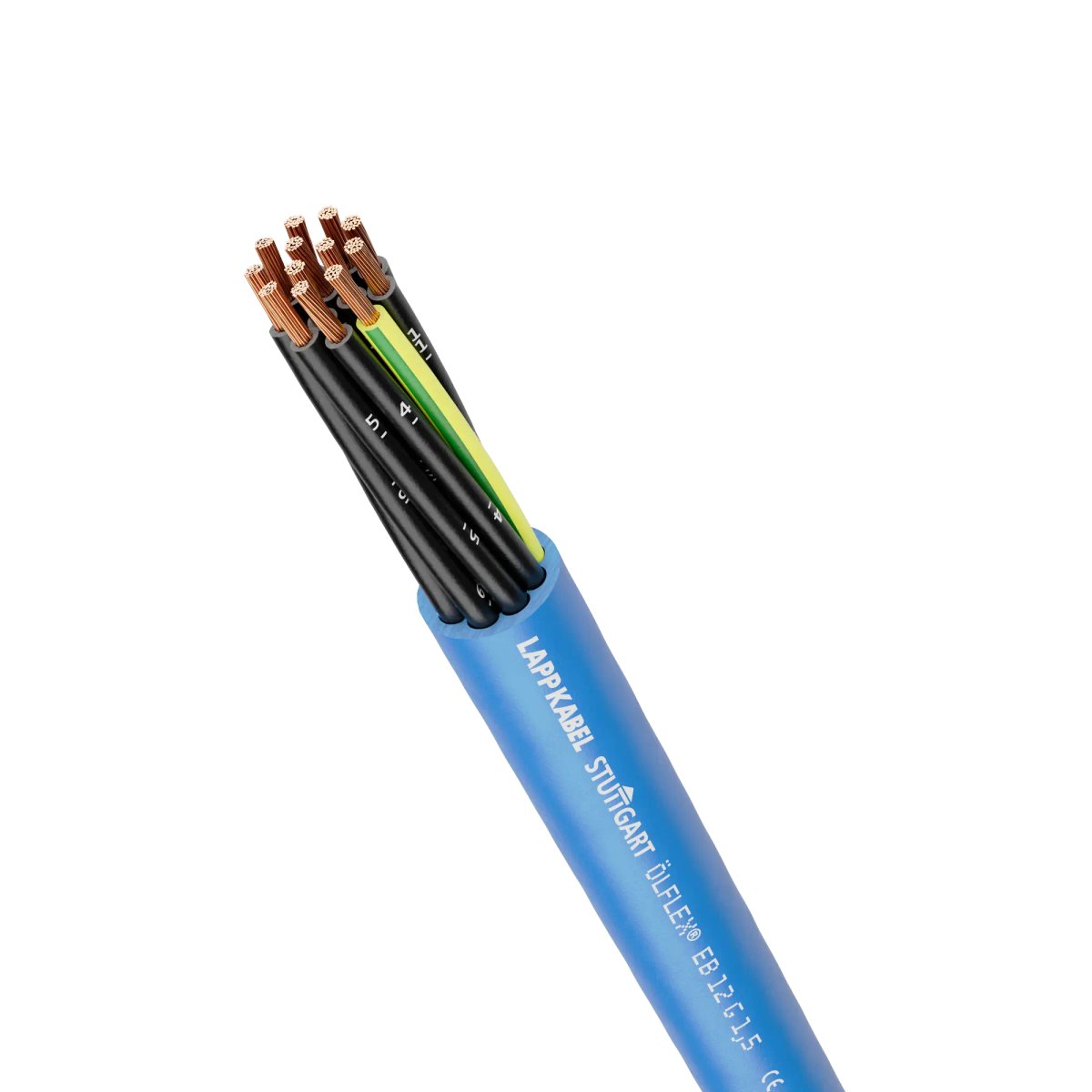

Cable
ROW cable length Add-on
PDF

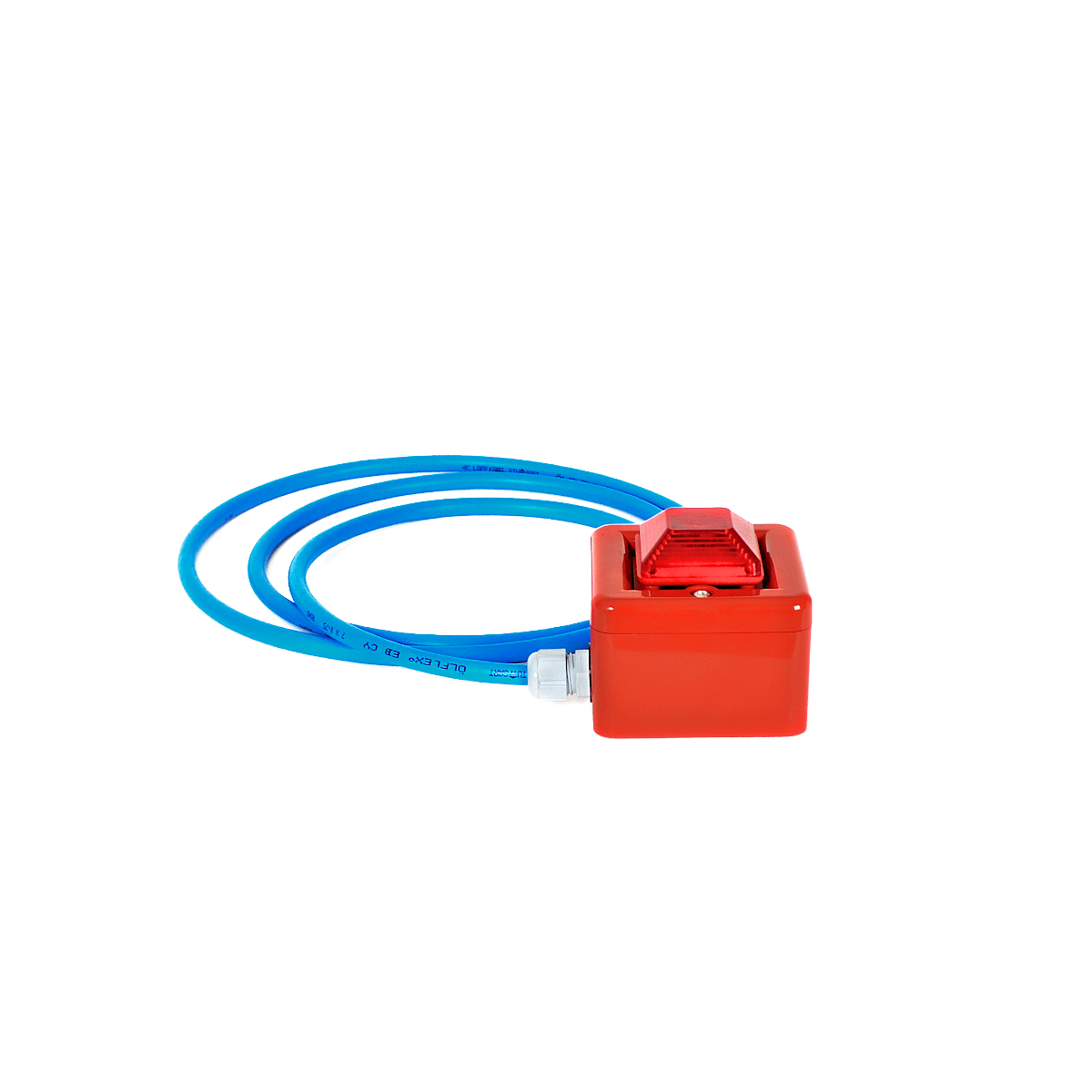

Local Alarm
External Audio/Visual Alarm Add-on
PDF

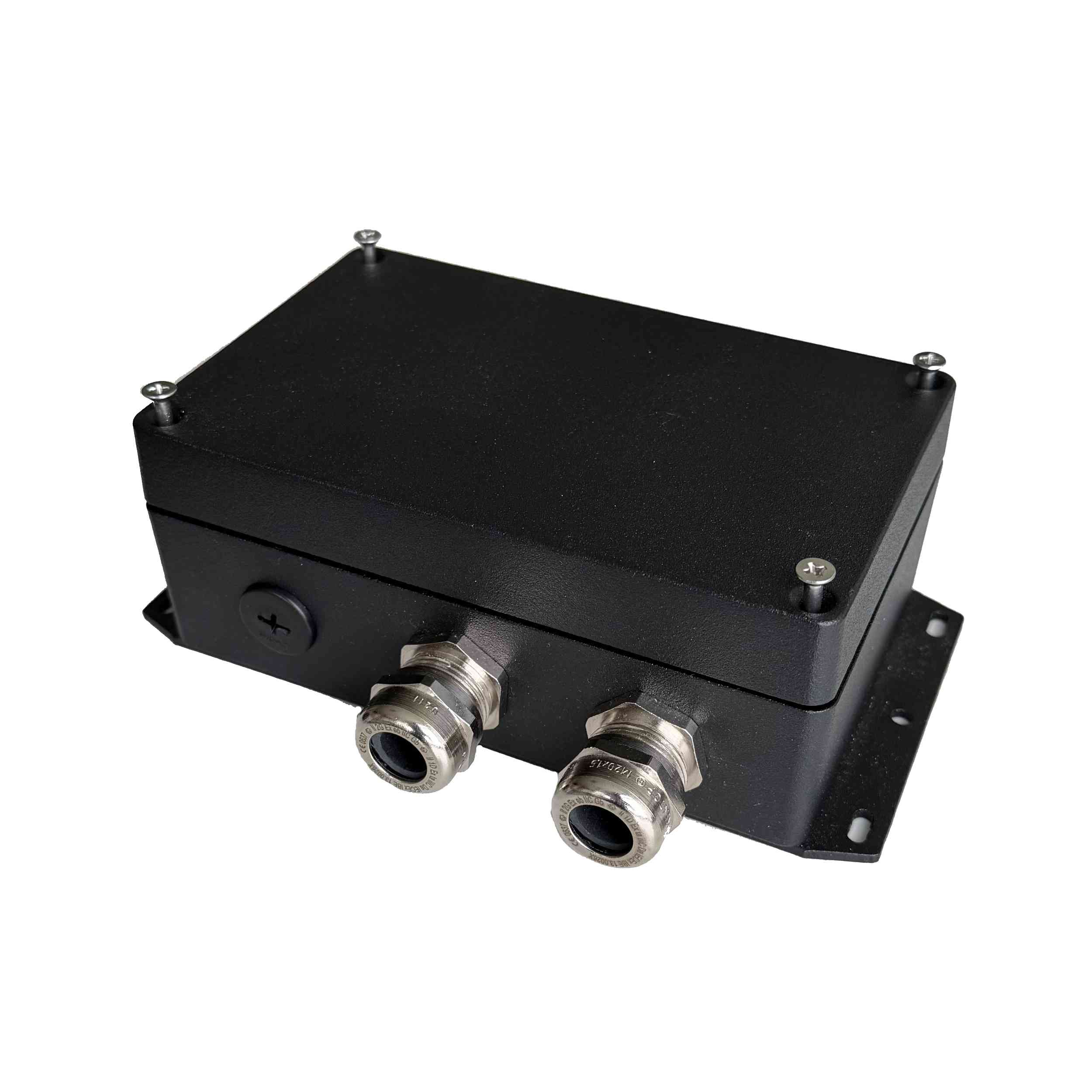

Junction Box
Weatherproof J-Box Cable Extender Add-on
DC to DC converter
24 to 12 VDC Converter Add-on
PDF

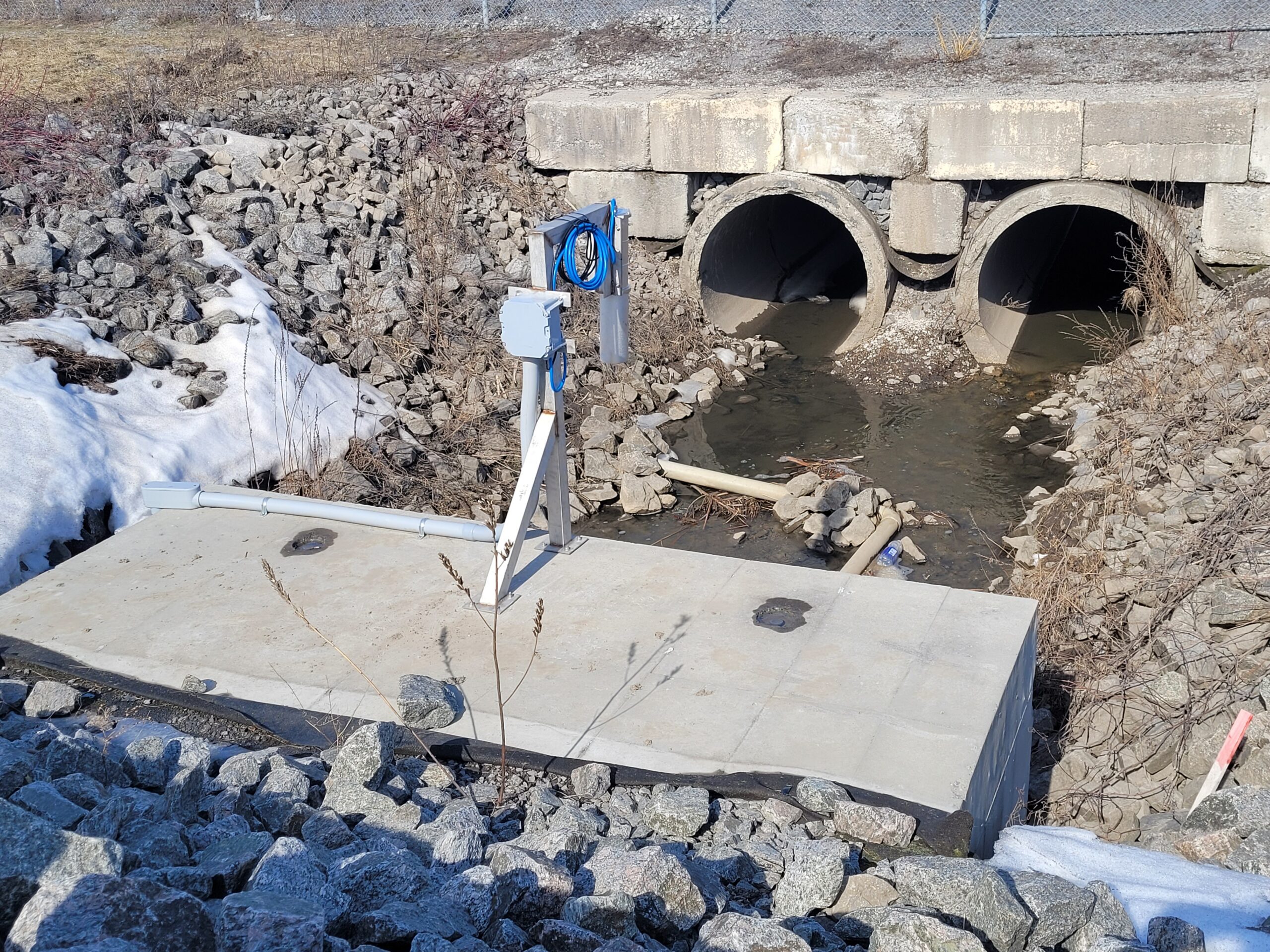

Canada YUL Airport
Canada Airport Drainage Discharge

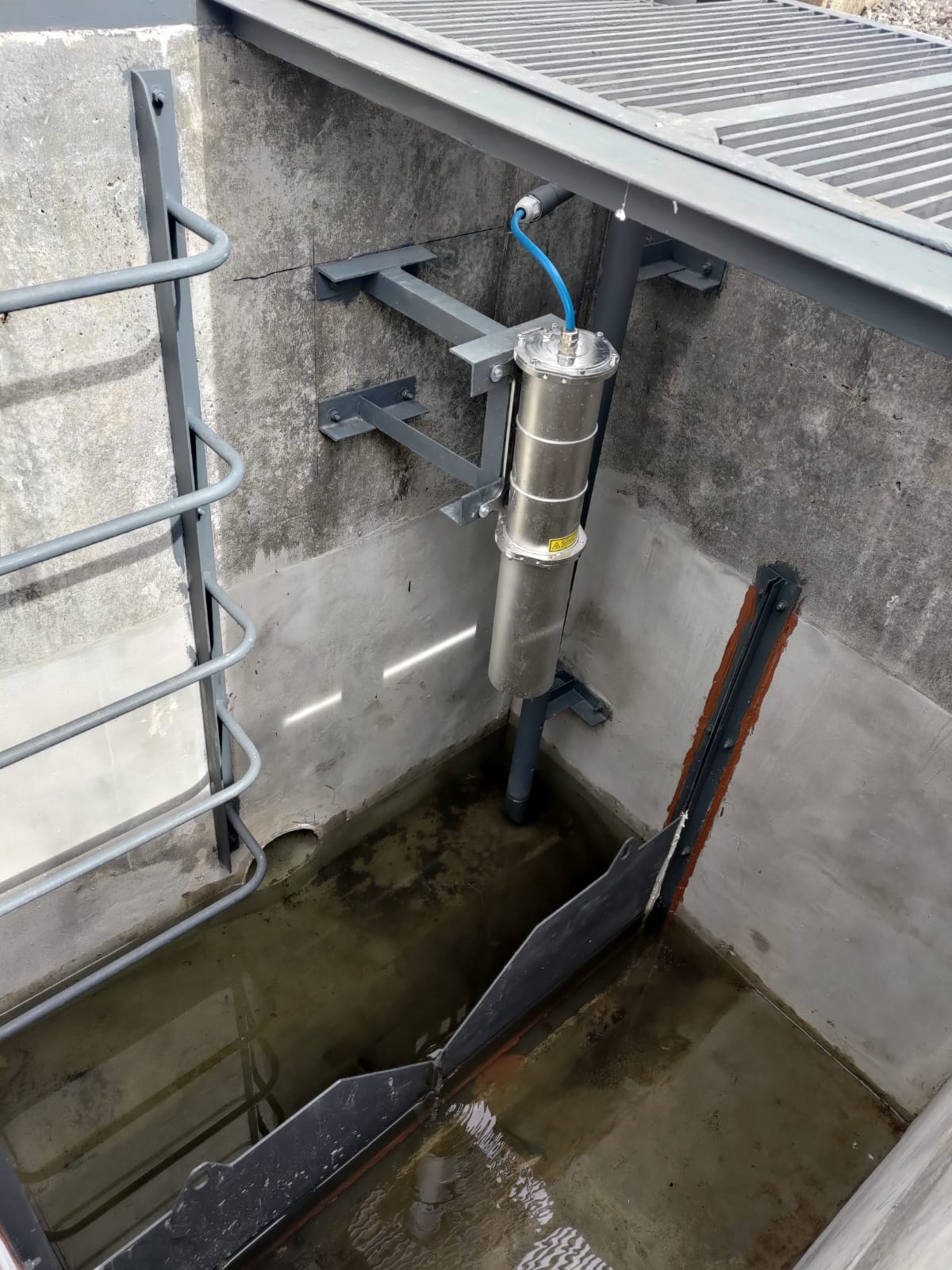

Costa Rica SJO Airport
Costa Rica Airport Rainwater Collector

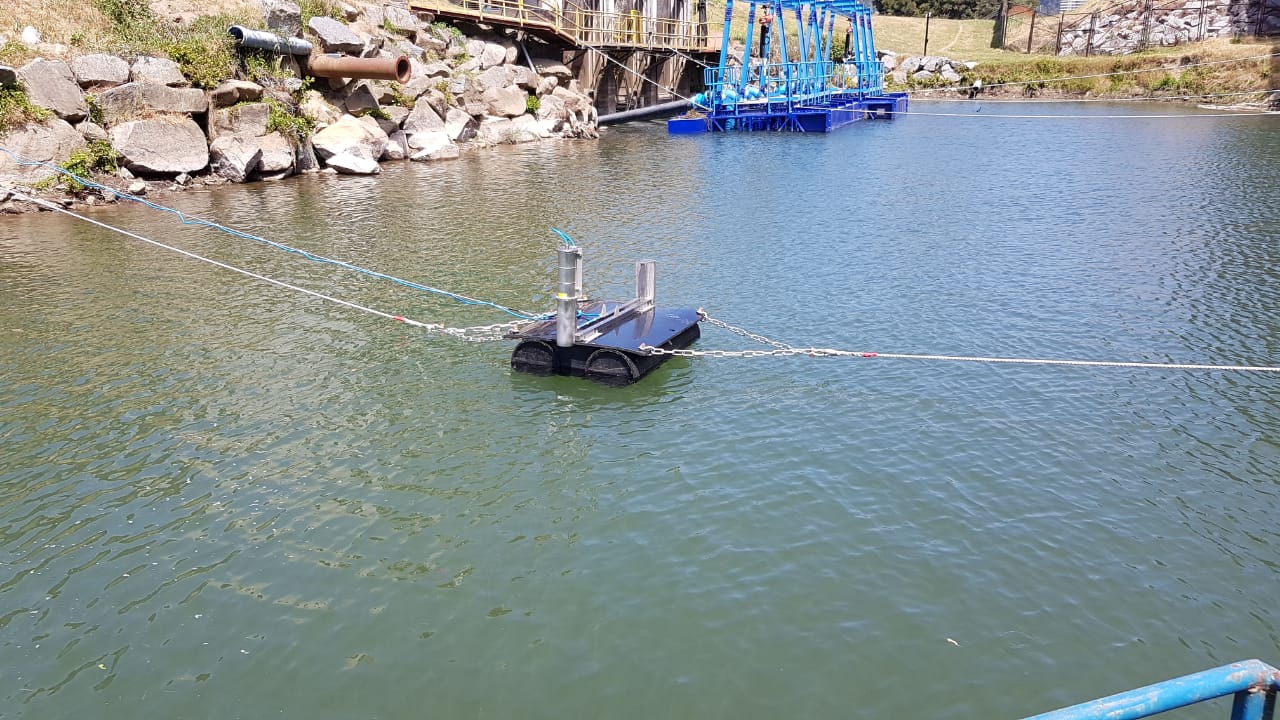

Chile WWTP
Chile WWTP
Netherlands Oil Terminal
Netherlands Oil Terminal
UAE Desalination Plant
UAE Desalination Plant
ProductDocument CategoryDescriptionFile Type
ROW SeriesBrochureMarketing brochure for the ROW oil spill detectors.pdfDownload
ROW Stainless SteelTechnical SheetO-2311S, O-4501S, O-4500S.pdfDownload
ROW Stainless SteelTechnical SheetO-2311S, O-4501S, O-4500S: Bracket dimensions.pdfDownload
ROW Stainless SteelTechnical SheetO-2311S, O-4501S, O-4500S: 3D CAD drawing.stpDownload
ROW SeriesDeclarationLDI ROW Declaration of Conformity.pdfDownload
ROW SeriesDeclarationLDI ISO 9001:2015.pdfDownload
ROW SeriesManualROW Oil Spill Detector Series Manual.pdfDownload
ROW SeriesManualROW Accessory Modbus Manual.pdfDownload
ROW SeriesSoftwareROW Configurator.zipDownload
ROW SeriesSoftwareROW Manager and Visualization.zipDownload
